| Elenco dei limiti di temperatura dell'app |
| Materialeee | Temperatura media ℃ | Materialeee | Temperatura media ℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PVC-C | -20℃~95℃ | PVC-U | -5℃~45℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| FRPP | -20℃~120℃ | PPH | -20℃~ 110℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PVDF | 40℃~150℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| Caratteristiche strutturali del prodotto |
1. Il diaframma di tenuta è realizzato in F46 o PFA, con una resistenza alla piegatura ≥ 120.000 volte e una resistenza alla corrosione paragonabile a F4.
2. Il meccanismo di sollevamento a vite offre una bassa coppia di apertura e chiusura e un'eccellente stabilità.
3. l'attuatore può essere controllato a distanza tramite un computer o un centro di controllo, controllando il flusso e il flusso del mezzo aprendo e chiudendo la valvola. Ciò garantisce maggiore comodità e velocità, riduce i costi di manodopera e garantisce la sicurezza dei lavoratori in cantiere.

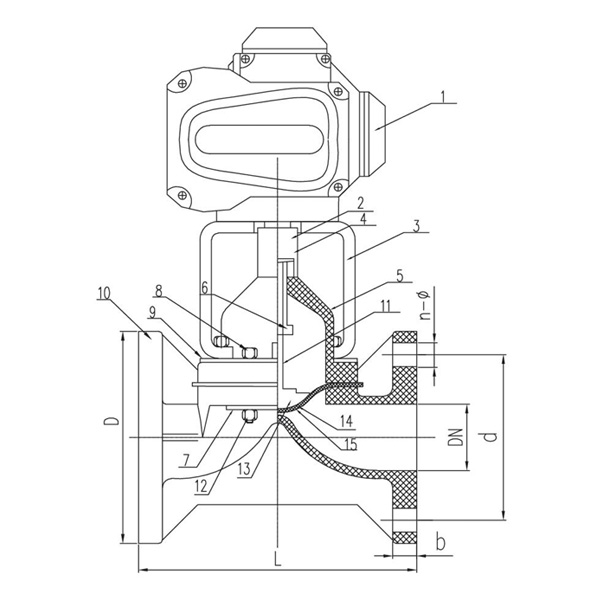

| Tabella dei materiali delle parti |
| No. | Nome | Materialeee | Qtà. | |||||||||||||||||||||||||
| 1 | Attuatore elettrico | Lega di alluminio | 1 | |||||||||||||||||||||||||
| 2 | Biella | Acciaio | 2 | |||||||||||||||||||||||||
| 3 | Staffa attuatore elettrico/pneumatico | Ferro | 1 | |||||||||||||||||||||||||
| 4 | Perno di connessione | Acciaio | 1 | |||||||||||||||||||||||||
| 5 | Cofano | PPH、PVC-C、PVC-U、PVDF、FRPP | 1 | |||||||||||||||||||||||||
| 6 | Dado del gioco | Acciaio SS、 Rame | 1 | |||||||||||||||||||||||||
| 7 | Piastra | Q345, acciaio SS | 2 | |||||||||||||||||||||||||
| 8 | Vite | Acciaio,Acciaio Inossidabile | 4 | |||||||||||||||||||||||||
| 9 | Piastra | Q345, acciaio SS | 2 | |||||||||||||||||||||||||
| 10 | Corpo | PPH、PVC-C、PVC-U、PVDF、FRPP | 1 | |||||||||||||||||||||||||
| 11 | Gambo | Acciaio,Acciaio Inossidabile | 1 | |||||||||||||||||||||||||
| 12 | Tappo dado | Acciaio,Acciaio Inossidabile | 4 | |||||||||||||||||||||||||
| 13 | Piastra della valvola | PPH,PVC-C,PVC-U FRPP, PVDF/ghisa | 1 | |||||||||||||||||||||||||
| 14 | Flim | EPDM,FPM | 1 | |||||||||||||||||||||||||
| 15 | Diaframma | F46.PFA.PTFE | 1 | |||||||||||||||||||||||||
| Elenco dimensioni |
| Specifica | D | d | L | b | n-Φ | |||||||||||||||||||||||
| 15 | 95 | 65 | 125 | 14 | 4-Φ14 | |||||||||||||||||||||||
| 20 | 105 | 75 | 135 | 18 | 4-Φ14 | |||||||||||||||||||||||
| 25 | 115 | 85 | 145 | 18 | 4-Φ14 | |||||||||||||||||||||||
| 32 | 135 | 100 | 160 | 18 | 4-Φ18 | |||||||||||||||||||||||
| 40 | 145 | 110 | 180 | 20 | 4-Φ18 | |||||||||||||||||||||||
| 50 | 160 | 125 | 210 | 22 | 4-Φ18 | |||||||||||||||||||||||
| 65 | 180 | 145 | 250 | 24 | 4-Φ18 | |||||||||||||||||||||||
| 80 | 195 | 160 | 300 | 24 | 8-Φ18 | |||||||||||||||||||||||
| 100 | 225 | 180 | 350 | 28 | 8-Φ18 | |||||||||||||||||||||||
| 125 | 245 | 210 | 400 | 30 | 8-18 | |||||||||||||||||||||||
| 150 | 280 | 240 | 455 | 30 | 8-Φ23x27 | |||||||||||||||||||||||
| 200 | 335 | 295 | 570 | 40 | 8-Φ22 | |||||||||||||||||||||||
| 250 | 390 | 350 | 680 | 38 | 12-Φ23 | |||||||||||||||||||||||
| 300 | 445 | 400 | 680 | 38 | 12-Φ23 | |||||||||||||||||||||||
